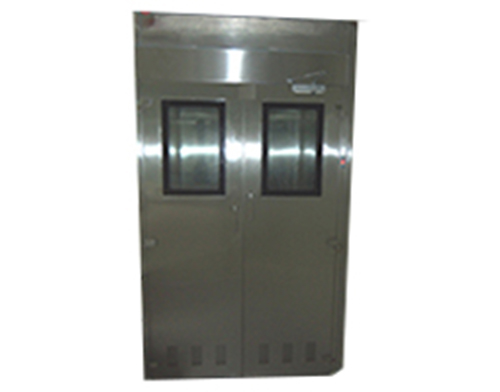

Weighing Booth Extractor
Weighing Booth Extractor is designed specifically for powder containment
applications, the Powder weighing enclosure employs carefully directed inward airflow
at the face of the enclosure to hazardous powders or potent pharmaceutical compounds.
The aerodynamically designed enclosure reduces airflow turbulence for maximum containment
while minimizing the effect that air drafts may have on sensitive weighing balances.
The enclosure design exceeds the containment requirements of proven by independent
type testing. All exhaust air is HEPA-filtered, removing virtually all particulate
matter, before recirculation to the laboratory.
weighing booth extractor Unitis with a variety of standard dimensions
also our cabinet can be custom engineered to any size. Weighing Booth Extractor
available in powder coated Mild Steel, SS 304 / 316 / 316L or a
combination of both.
Standard Model Available :
|
Model No.
|
Working Area (mm)
|
Airflow Velocity
(Down flow)
|
Air Cleanliness
|
Air Flow
|
|
WBE-48-36
|
1260 X 955 X 2170
|
0.45±0.05mps/
|
ISO Class 5 (ISO 14644-1:1999 (E)) /
|
Vertical -
|
|
WBE-48-48
|
1275 X 1260 X 2170
|
90(fpm)
|
Class 100 (U.S. FED STD 209 E)
|
Recirculatory
|
Technical Specification :
Exhaust
HEPA filter :
|
Imported Minipleat HEPA filter with hot melt technology, which conforms to EU-14
Grade at exhaust position with an efficiency rating better than 99.999% for 0.3µ.
|
|
Pre-filter :
|
Prefilter are made from non-woven synthetic with HDPE mesh; conforms to EU 6 Grade,
with an efficiency rating better than 95% down to 5µ.
|
Motor
Alower Assembly :
|
Motor blower designed of statically and dynamically balanced for supply of sufficient
capacity and static pressure to take care of airflow requirement for entire life
of HEPA.
|
|
Differential Pressure Gauge :
|
Dwyer Make Magnehelic Gauge (0 -25 mm: 1 No.) to monitor pressure drop across HEPA
filter.
|
|
Lighting :
|
Fluorescent light (250 Lux) at work surface
|
|
ON/OFF Switches :
|
SS ON/OFF switches for motor & lights
|
|
Switch Socket :
|
6/15 amp single-phase switch socket use for external equipment
|
|
Control System :
|
Electrical control panel mounted on the side panel of the unit.
|
|
Door :
|
SS 304 double walled door construction with flush glass view panels with door closer,
SS handles and SS hinges
|
Door
release
(Push type) :
|
Door release provides from the front of the unit.
|
|
DOP Port :
|
DOP test port at upstream of HEPA filter to personnel for carrying out the HEPA
filter integrity test.
|
|
Exhaust Duct :
|
SS 304 1 ft long elbow duct for exhaust
|
|
Side Panel :
|
SS 304 Double Walled Side Panels.
|
|
Electrical Supply :
|
230V AC 1Ø 50Hz / 415 V AC 3Ø 50 Hz
|
|
Noise Level :
|
Less than 67 dB on scale ‘A’ when ambient is not greater than 55 dB on scale ‘A’
|
|
Vibration Level :
|
Minimum
|
Optional Accessories :
Audio visual alarm indicating condition of HEPA filters
Clean down timer with operation hold indicator
VFD based control systems
Photohelic guage / Digital pressure gauge to monitor of pressure drop across filter.
SS Perforation table for keeping weighing scale/p>
Sodium vaporlamps
Flame proof fitting
Safe change bag in / bag out arrangement for filters
Double skin side panels with view windows
Service access from front / back / side
Horizontal internal coving at base
