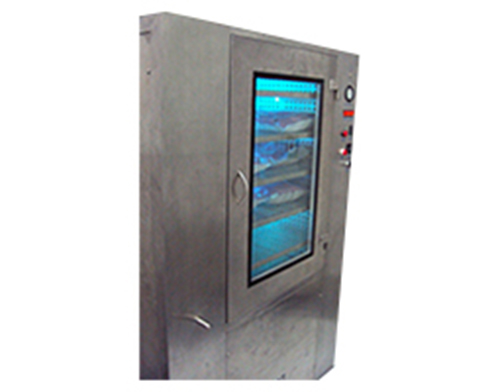

Garment Storage Cabinet
Garment Storage Cabinet is designed to provide ISO Class 5 (Class
100) particle free work area for storing sterile packed garments to meet garment
storage needs while making a positive contribution to maintaining the cleanliness
of your controlled cleanroom environment.
Cleanroom garments can accumulate particulate contamination during storage and between
laundry washes, which in turn may lead to lower product yields and increased product
quality issues. The work area is continuously supplied with positive pressure HEPA
filtered re-circulated vertical / horizontal air flow.
These are widely used for storage of clean apparel for clean rooms as these are
equipped with HEPA filter and U.V. germicidal tube. Therefore, these are safe and
ensure that the garments completely free from bacterial contamination.
Our range of Garment Storage Cabinet is available in various specifications
as per the client’s requirements. Garment Storage Cabinet is with a variety of standard
dimensions also our Garment Cabinet can be custom engineered to any size. Garment
Storage Cabinet available in powder coated Mild Steel, SS 304 / 316 / 316L
or a combination of both.
Standard Model Available :
|
Model No.
|
Work Area (mm)
|
Airflow Velocity
(Down flow)
|
Air Cleanliness
|
Air Flow
|
|
GSC-24-24-24
|
610 X 610 X 610
|
0.45±0.05mps/
|
ISO Class 5 (ISO 14644-1:1999 (E)) /
|
Vertical / Horizontal
|
|
GSC-24-24-36
|
610 X 610 X 915
|
90(fpm)
|
Class 100 (U.S. FED STD 209 E)
|
– Recirculatory
|
|
GSC-36-24-24
|
915 X 610 X 610
|
|
|
(Based on application)
|
Technical Specification :
|
Supply filter :
|
Imported Minipleat HEPA filter with hot melt technology, which conforms to EU-14
Grade at supply position with an efficiency rating better than 99.999% down to 0.3µ.
|
Return
Air Pre-filter :
|
Return Air Pre-filter are made from non-woven synthetic with HDPE mesh; conforms
to EU 6 grade, with an efficiency rating better than 95% down to 5µ.
|
Fresh
Air Filter :
|
Fresh Air Filter Made from non-woven synthetic with HDPE mesh; conforms to EU 4
Grade, with an efficiency rating better than 90% down to 10µ.
|
Motor
Alower Assembly :
|
Motor blower designed of statically and dynamically balanced for supply of sufficient
capacity and static pressure to take care of airflow requirement for entire life
of HEPA.
|
|
Differential Pressure Gauge :
|
Dwyer Make Magnehelic Gauge (0 -25 mm: 1 No.) to monitor pressure drop across HEPA.
|
|
Door :
|
SS 304 double walled door construction with flush glass view panels with SS handles
and SS hinges.
|
|
Interlocking :
|
Electro-Magnetic interlocking arrangement to put-off UV Light if either side door
opens.
|
|
Shelves :
|
SS 304 hanging arrangement (or) removable type shelves
|
|
Temperature Control :
|
Heater with thermostat for control of temperature
|
|
ON/OFF Switches :
|
SS ON/OFF switches for motor & lights
|
|
Switch Socket :
|
6/15 amp single-phase switch socket use for external equipment
|
|
DOP Port :
|
DOP test port at upstream of HEPA filter to personnel for carrying out the HEPA
filter integrity test.
|
|
Electrical Supply :
|
230V AC 1- Ø 50HZ / 415V AC 3-Ø 50HZ
|
|
Noise Level :
|
Less than 67 dB on scale ‘A’ when ambient is not greater than 55 dB on scale ‘A’
|
|
Vibration Level :
|
Minimum
|
Optional Accessories :
U.V. Light with Hour Meter used for bacteria/virus killing & interlocking arrangement
to put off UV Light if either side door opens.
6/15 amp single-phase switch socket for external equipment
Electro-Magnetic / Mechanical Interlocking
Audio visual alarm indicating condition of HEPA filters
Clean down timer with operation hold indicator
VFD based control systems
Photohelic guage / Digital pressure gauge to monitor of pressure drop across filter.
Sodium vaporlamps
Flame proof fitting
