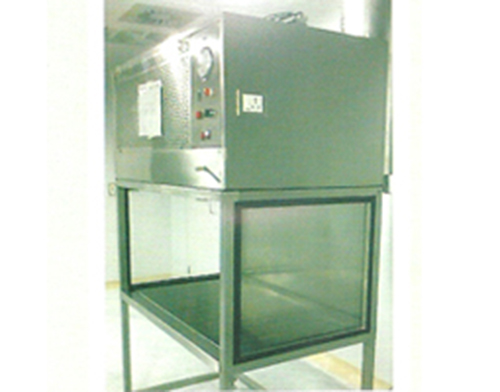

Mobile Laminar Air Flow Unit
Mobile Laminar Air Flow Unit is designed for transporting sterile
products under ISO Class 5 (Class 100) particle free work area to ensure product
integrity. The work area is continuously supplied with positive pressure HEPA filtered
recirculated horizontal air flow.
Mobile Laminar Air Flow Unit is with a variety of standard dimensions
also our cabinet can be custom engineered to any size. Mobile Laminar air flow available
in powder coated Mild Steel, SS 304 / 316 / 316L or a combination
of both.
Standard Model Available :
|
Model No.
|
Working Area (mm)
|
Airflow Velocity
(Down flow)
|
Air Cleanliness
|
Air Flow
|
|
MLAF-36-30-30
|
915 x 760 x 760
|
|
|
|
|
MLAF-48-30-30
|
1220 x 760 x 760
|
0.45±0.05mps/
|
ISO Class 5 (ISO 14644-1:1999 (E)) /
|
|
|
MLAF-60-30-30
|
1525 x 760 x 760
|
90(fpm)
|
Class 100
(U.S. FED STD 209 E)
|
Vertical
|
|
MLAF-72-30-30
|
1830 x 760 x 760
|
|
|
|
Technical Specification :
|
Supply filter :
|
Imported Minipleat HEPA filter with hot melt technology, which conforms to EU-14
Grade at supply position with an efficiency rating better than 99.999% down to 0.3µ.
|
|
Pre-filter :
|
Pre-filter are made from non-woven synthetic with HDPE mesh; conforms to EU 6 grade,
with an efficiency rating better than 95% down to 5µ.
|
|
Motor Blower Assembly :
|
Motor blower designed of statically and dynamically balanced for supply of sufficient
capacity and static pressure to take care of airflow requirement for entire life
of HEPA.
|
|
Differential Pressure Gauge :
|
Dwyer Make Magnehelic Gauge (0 -25 mm: 1 No.) to monitor pressure drop across HEPA.
|
|
Lighting :
|
Fluorescent light with milky white diffuser (250 Lux) at work surface
|
|
ON/OFF Switches :
|
SS ON/OFF switches for motor & lights
|
|
Switch Socket :
|
6/15 amp single-phase switch socket use for external equipment
|
|
Control Panel :
|
Electrical control panel mounted in the unit.
|
|
DOP Port :
|
DOP test port at upstream of HEPA filter to personnel for carrying out the HEPA
filter integrity test with (PAO) solution.
|
|
Battery back-up :
|
Battery back-up with inverter for 30 mins
|
|
Handel :
|
SS 304 handle for mobility
|
|
Castrol wheel :
|
PU coated lockable castor wheels
|
|
Electrical Supply :
|
230V AC 1- Ø 50HZ / 415V AC 3-Ø 50HZ
|
|
Noise Level :
|
Less than 67 dB on scale ‘A’ when ambient is not greater than 55 dB on scale ‘A’
|
|
Vibration Level :
|
Minimum
|
Optional Accessories :
Anti-static PVC strip overlapping curtains
Audio visual alarm indicating condition of HEPA filters
Clean down timer with operation hold indicator
VFD based control systems
Photohelicguage / Digital pressure gauge to monitor of pressure drop across filter.
Sodium vaporlamps
Flame proof fitting
