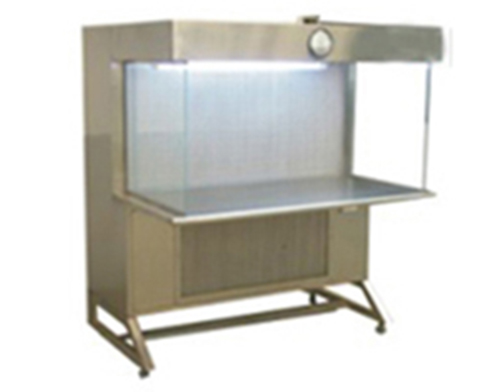

Horizontal Laminar Air Flow Workstation
The Horizontal Laminar Flow workstation is designed specifically
for highest product protection by providing ISO Class 5 particle free work area
for handling critical process. The main HEPA filter is situated immediately behind
the working area; clean air is then blown across the work surface towards the operator.
The work area is continuously supplied with positive pressure HEPA filtered horizontal
air flow. It prevents contamination from operator and environment to work area.
The laminarity of the flow prevents cross contamination between the items handled
in the working space.
These units are suitable for the handling of non-hazardous products, sensible to
dust and/or to contamination wherever operator protection is not required.
Horizontal Laminar Air Flow Unit is with a variety of standard
dimensions also our cabinet can be custom engineered to any size. Horizontal Laminar
air flow are available in powder coated Mild Steel, SS 304 / 316 / 316L
or a combination of both.
Standard Model Available :
|
Model No.
|
Work Area (mm)
|
Airflow Velocity
(Down flow)
|
Air Cleanliness
|
Air Flow
|
|
HLAF-36-24-24
|
915 x 610 x 610
|
|
|
|
|
HLAF-48-24-24
|
1220 x 610 x 610
|
0.45±0.05mps/
|
ISO Class 5 (ISO 14644-1:1999 (E)) /
|
|
|
HLAF-48-24-30
|
1220 x 610 x 760
|
90(fpm)
|
Class 100
(U.S. FED STD 209 E)
|
Horizontal
|
Technical Specification :
|
Supply filter :
|
Imported Minipleat HEPA filter with hot melt technology, which conforms to EU-14
Grade at supply position with an efficiency rating better than 99.999% down to 0.3µ.
|
|
Pre-filter :
|
Made from non-woven synthetic with HDPE mesh; conforms to EU 6 grade, with an efficiency
rating better than 95% down to 5µ.
|
Motor
Alower Assembly :
|
Motor blower designed of statically and dynamically balanced for supply of sufficient
capacity and static pressure to take care of airflow requirement for entire life
of HEPA.
|
|
Differential Pressure Gauge :
|
Dwyer Make Magnehelic Gauge (0 -25 mm: 1 No.) to monitor pressure drop across HEPA.
|
|
Lighting :
|
Fluorescent light with milky white diffuser (250 Lux) at work surface
|
|
ON/OFF Switches :
|
SS ON/OFF switches for motor & lights
|
|
Switch Socket :
|
6/15 amp single-phase switch socket use for external equipment
|
|
Work Table :
|
SS work table with due reinforcement
|
|
Side Panel :
|
Glass side panel screens for maximum visibility
|
|
DOP Port :
|
DOP test port at upstream of HEPA filter to personnel for carrying out the HEPA
filter integrity test.
|
|
Electrical Supply :
|
230V AC 1- Ø 50HZ / 415V AC 3-Ø 50HZ
|
|
Noise Level :
|
Less than 67 dB on scale ‘A’ when ambient is not greater than 55 dB on scale ‘A’
|
|
Vibration Level :
|
Minimum
|
Optional Accessories :
U.V. Light with hour meter
SS 304 cock for gas and air
Foldable polycarbonate front door
Audio visual alarm indicating condition of HEPA filters
Clean down timer with operation hold indicator
VFD based control systems
Photohelic guage / Digital pressure gauge to monitor of pressure drop across filter.
Sodium vaporlamps
Flame proof fitting
