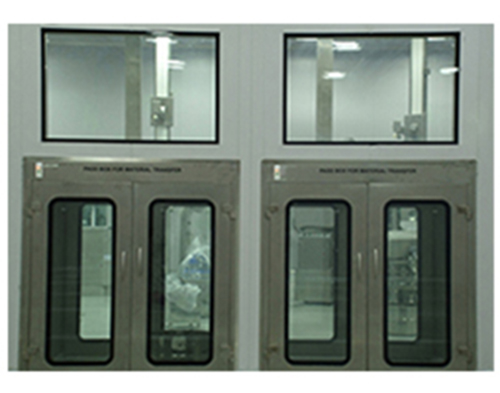

Static Pass Box | Ventilated Pass Box
Static Pass Boxes | Ventilated Pass Box is widely used for transferring
the material from and into the clean room, without contaminating the air of clean
room & without having to open room door. These cleanroom pass boxes can be installed
on the wall between the clean room and other room.
Our range of static pass boxes is available in various specifications as per the
client’s requirements.
Static Pass Box | Ventilated Pass Box is with a variety of standard
dimensions also our pass boxes can be custom engineered to any size. Static Pass
Boxes | Ventilated Pass Box are available in powder coated Mild Steel, SS 304
/ 316 / 316L or a combination of both.
Standard Model Available :
|
Model No.
|
Internal Dimensions (mm)
|
External Dimensions (mm)
|
Electrical
|
|
SPB-18- 18 -18
|
450 X 450 X 450
|
580 X 520 X 650
|
230V AC 1- Ø 50HZ /
|
|
SPB-24- 24 -24
|
610 X 610 X 610
|
740 X 680 X 810
|
415V AC 3-Ø 50HZ
|
Technical Specification :
|
Door :
|
SS 304 double walled door construction with flush glass view panels with SS handles
and SS hinges.
|
|
Interlocking :
|
Electro-Magnetic Interlocking type door arrangement to ensure that only one side
door can be opened at any given time.
|
|
Door Indication :
|
Indicators on either side for door open condition.
|
|
Door release :
|
Door release Switch on either side.
|
|
SS coving :
|
Internal covings for easy cleaning.
|
Optional Accessories :
U.V. Light with Hour Meter used for bacteria/virus killing & interlocking arrangement
to put off UV Light if either side door opens.
Support stand for mounting of pass box.
Flange for sealing the gap between the pass box and the clean room wall.
Electro-Magnetic / Mechanical Interlocking.
Floor mounted construction with three side wall structure & Door drop seal.
Provision for ventilation with perforated grills.
Flameproof fitting.
Documentation :
All necessary documents will be provided as per the latest prevailing standards.
