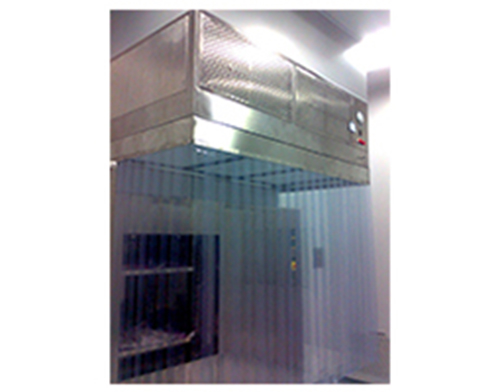

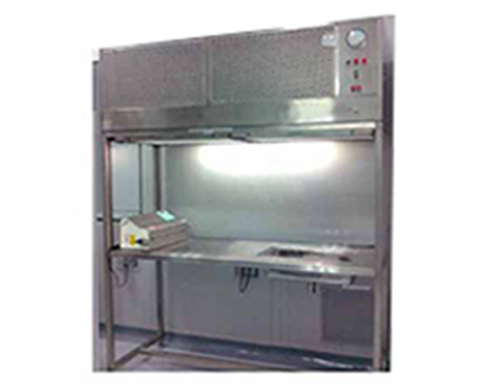

Vertical Laminar Flow
Vertical Laminar Flow Unit is designed specifically for product
protection. The Cabinet is a clean bench which provides ultra clean sterile HEPA
filtered class 100 air in an isolated area for operations requiring a particulate-free
environment where the highly sensitive process activities are carried-out.
The Vertical laminar air Flow Unit draws air in through the top
of the unit through a pre-filter, through a plenum and vertically down over the
work-surface and past the lap of the operator. It has the advantage of not pushing
air into the face of the operator as in a horizontal laminar air flow cabinet.
The laminar air flow cabinets are used for work with low-risk substances and materials,
when protection of working material from environment is required or work with item
requires a sterile working zone. Cabinets are used for equipment of local workplaces
in medical, pharmaceutical and other institutes with high requirements for air cleanliness
in the working zone.
Vertical Laminar Air Flow Unit is with a variety of standard dimensions
also our unit can be custom engineered to any size. Laminar air flow available in
powder coated Mild Steel, SS 304 / 316 / 316L or a combination
of both.
Standard Model Available :
Model No.
|
Hepa Filter Area (mm)
|
Airflow Velocity
(Down flow)
|
Air Cleanliness
|
CSVLAF-36-24
|
915 x 610
|

|

|
CSVLAF-48-24
|
1220 x 610
|
0.45±0.05mps/
|
ISO Class 5 (ISO 14644-1:1999 (E)) /
|
SMVLAF-36-24-30
|
915 x 610
|
90(fpm)
|
Class 100 (U.S. FED STD 209 E)
|
SMVLAF-48-30-30
|
1220 x 762
|

|

|
Technical Specification :
Supply filter :
|
Imported Minipleat HEPA filter with hot melt technology, which conforms to EU-14
Grade at supply position with an efficiency rating better than 99.999% down to 0.3µ
|
Pre-filter :
|
Pre-filter are made from non-woven synthetic with HDPE mesh; conforms to EU 6 grade,
with an efficiency rating better than 95% down to 5µ.
|
Motor
Alower Assembly :
|
Motor blower designed of statically and dynamically balanced for supply of sufficient
capacity and static pressure to take care of airflow requirement for entire life
of HEPA.
|
Differential Pressure Gauge :
|
Dwyer make magnehelic Gauge (0 -25 mm: 1 No.) to monitor pressure drop across HEPA.
s
|
Lighting :
|
Fluorescent light with milky white diffuser (250 Lux) at work surface
|
ON/OFF Switches :
|
SS ON/OFF switches for motor & lights
|
Switch Socket :
|
6/15 amp single-phase switch socket use for external equipment
|
Work Table :
|
SS work table with due reinforcement
|
Side Panel :
|
Glass side panel screens for maximum visibility
|
DOP Port :
|
DOP test port at upstream of HEPA filter to personnel for carrying out the HEPA
filter integrity test (with PAO solution)..
|
Switch Socket :
|
6/15 amp single-phase switch socket use for external equipment
|
DOP Port :
|
DOP test port at upstream of HEPA filter to personnel for carrying out the HEPA
filter integrity test (with PAO solution).
|
Electrical Supply :
|
230V AC 1- Ø 50HZ / 415V AC 3-Ø 50HZ
|
Noise Level :
|
Less than 67 dB on Scale ‘A’ when ambient is not greater than 55 dB on scale ‘A’
|
Vibration Level :
|
Minimum
|
Optional Accessories :
U.V. Light with hour meter.
SS 304 cock for gas and air.
Foldable polycarbonate front door.
Audio visual alarm indicating condition of HEPA filters.
Clean down timer with operation hold indicator.
VFD based control systems.
Photohelic guage / Digital pressure gauge to monitor of pressure drop across filter.
Sodium vaporlamps.
Flame proof fitting.
